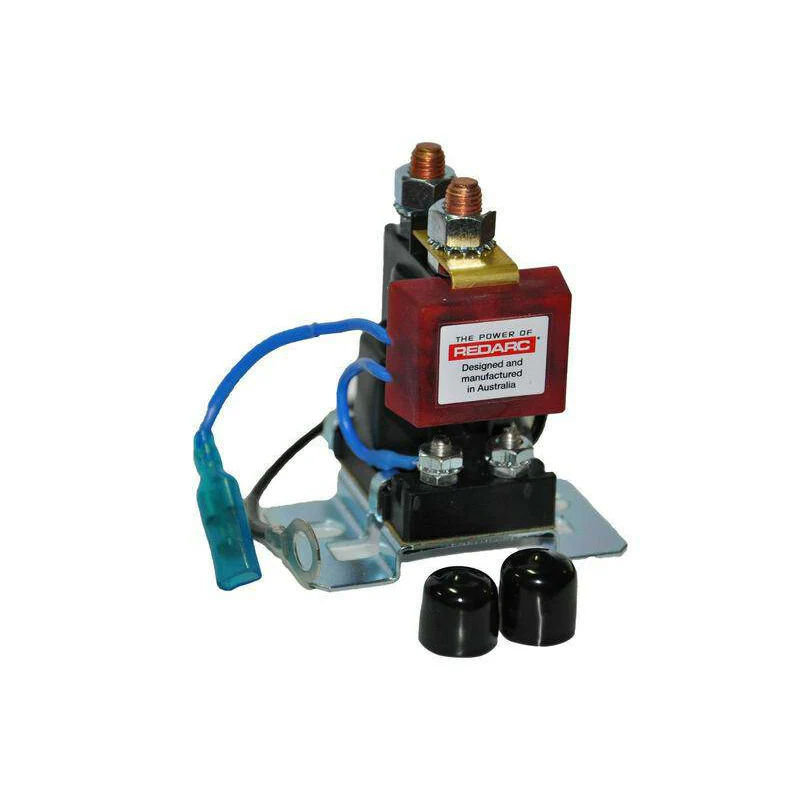

RedArc Dual Battery Isolator SBI12 12 Volt 100 Amp
SBI12
REDARC100 Amp Voltage Sensitive Relay
Battery Isolator
The perfect āno-fussā power management controllers suitable for a wide variety of 12V DC applications.
___
SPECIFICATIONS
|
PRODUCT DETAILS:
PART NO. VOLTAGE CHARGING CURRENT CUT - IN VOLTAGE CUT - OUT VOLTAGE MINIMUM OPERATING VOLTAGE CHARGE TYPE CONTROL MOUNTING CURRENT DRAW SURGE PROTECTION INGRESS PROTECTION OVERRIDE RECOMMENDED FUSE MINIMUM CABLE SIZE APPROVALS L.E.D CHARGE INDICATION |
SBI12 12 VOLT 100 AMPS CONTINUOUS (not recommended for winching) 13.2 - 13.4 VOLTS 12.6 - 12.7 VOLTS 10 VOLTS PARALLEL MCU SURFACE / FIREWALL CHARGING 550mA (Standby 10mA) BUILT - IN IP66 RATING REQUIRES MINIMUM 10 VOLTS 150 AMPS 14mm2 (6 B&S) EMC POWER ON |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
RedArc Dual Battery Isolator SBI12 12 Volt 100 Amp
RedArc Dual Battery Isolator SBI12 12 Volt 100 Amp
SBI12
REDARC100 Amp Voltage Sensitive Relay
Battery Isolator
The perfect āno-fussā power management controllers suitable for a wide variety of 12V DC applications.
___
SPECIFICATIONS
|
PRODUCT DETAILS:
PART NO. VOLTAGE CHARGING CURRENT CUT - IN VOLTAGE CUT - OUT VOLTAGE MINIMUM OPERATING VOLTAGE CHARGE TYPE CONTROL MOUNTING CURRENT DRAW SURGE PROTECTION INGRESS PROTECTION OVERRIDE RECOMMENDED FUSE MINIMUM CABLE SIZE APPROVALS L.E.D CHARGE INDICATION |
SBI12 12 VOLT 100 AMPS CONTINUOUS (not recommended for winching) 13.2 - 13.4 VOLTS 12.6 - 12.7 VOLTS 10 VOLTS PARALLEL MCU SURFACE / FIREWALL CHARGING 550mA (Standby 10mA) BUILT - IN IP66 RATING REQUIRES MINIMUM 10 VOLTS 150 AMPS 14mm2 (6 B&S) EMC POWER ON |
$40.62
Original: $135.39
-70%RedArc Dual Battery Isolator SBI12 12 Volt 100 Ampā
$135.39
$40.62Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
SBI12
REDARC100 Amp Voltage Sensitive Relay
Battery Isolator
The perfect āno-fussā power management controllers suitable for a wide variety of 12V DC applications.
___
SPECIFICATIONS
|
PRODUCT DETAILS:
PART NO. VOLTAGE CHARGING CURRENT CUT - IN VOLTAGE CUT - OUT VOLTAGE MINIMUM OPERATING VOLTAGE CHARGE TYPE CONTROL MOUNTING CURRENT DRAW SURGE PROTECTION INGRESS PROTECTION OVERRIDE RECOMMENDED FUSE MINIMUM CABLE SIZE APPROVALS L.E.D CHARGE INDICATION |
SBI12 12 VOLT 100 AMPS CONTINUOUS (not recommended for winching) 13.2 - 13.4 VOLTS 12.6 - 12.7 VOLTS 10 VOLTS PARALLEL MCU SURFACE / FIREWALL CHARGING 550mA (Standby 10mA) BUILT - IN IP66 RATING REQUIRES MINIMUM 10 VOLTS 150 AMPS 14mm2 (6 B&S) EMC POWER ON |
