Projecta IC50 (supersedes the model IC5000)

The Projecta IC50 is an extremely versatile charger that is capable of being set to charge smaller batteries found in recreational equipment right up to the huge power demands of large battery banks often found on houseboats and yachts.

The ideal charger for use on larger deep cycle battery systems, with the ability to switch between multi-chemistries with just a press of a button.

Compatible with use with generators (requires approx. 900 watts)

Comes with a 5 year warranty

Specifications:

Part No.	IC50

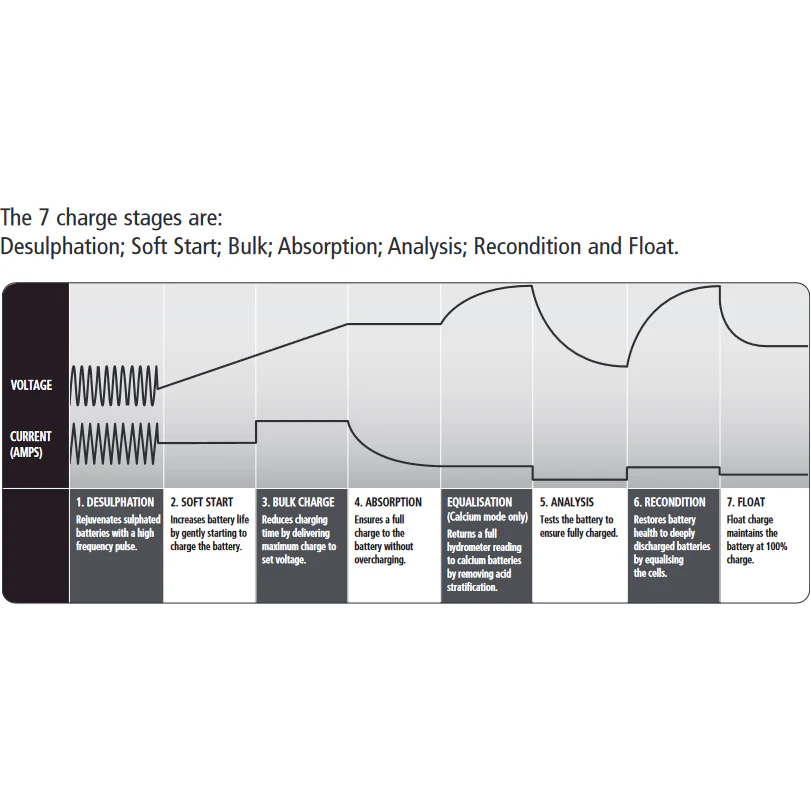

Type	7 Stage Automatic
Input	240VAC, 50Hz, 450w
Output	12V
Output Current	2, 6, 12, 25, 50A
Minimum Start Voltage	1.0V
Back Drain	Charger 1mA, with remote 2mA
Approvals	Electrical Safety, EMC
Charge Voltage	14.1V (GEL), 14.4V (AGM), 14.7V (WET)
	16.0V (CALCIUM), 14.2V (LITHIUM)
L.E.D Charge Indication
Screen	Back lit LCD screen
RED LIGHT ON	Power On
BLUE LIGHT ON	Charging
GREEN LIGHT ON	Fully Charged and maintaining, no need to turn off

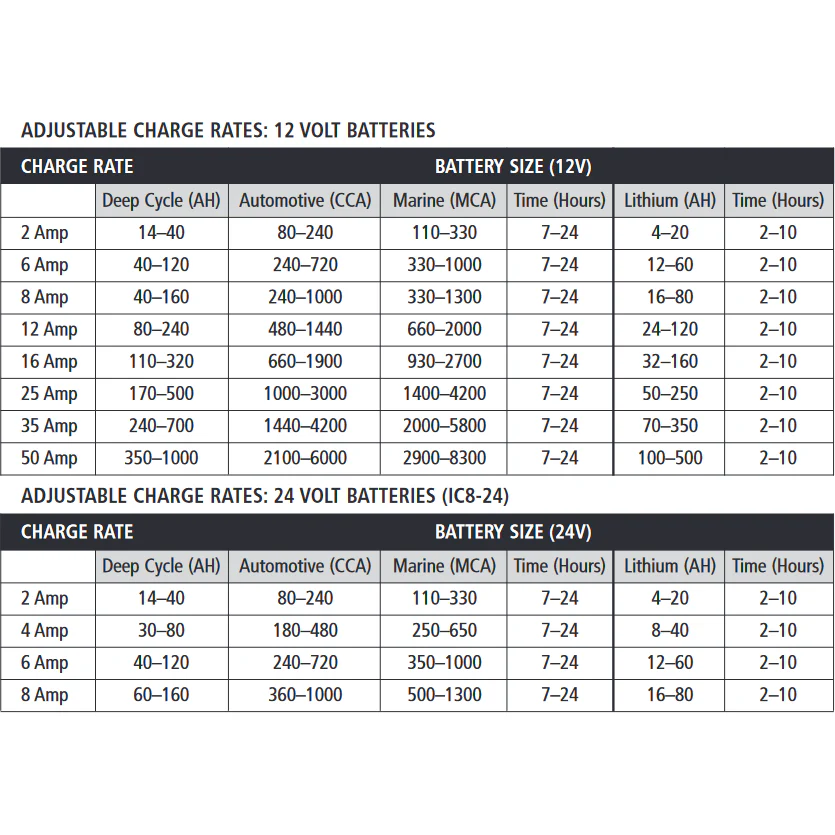

Battery Charge times:

	Voltage	Battery Size	Charge time
Automotive	12V	80-6000CCA	7 - 24Hrs
Marine	12V	110-8300MCA	7 - 24Hrs
Deep cycle	12V	14 - 1000Ah	7 - 24Hrs
Lithium	12V	4 - 500 Ah	2 - 10Hrs



Download Instructions



How to modify the IC50 leads for an Anderson or lug connection
