Dual Battery Package Tray SBI12 cables and more | Toyota Landcruiser 70 Series 4.5Lt V8 Turbo Diesel 2007-Sept 2016 | HDBT100
-
Toyota Landcruiser 70 series 4.5Lt V8 Turbo Diesel 2007 - Sept 2016
____________________________________________
This package is worth over $ 795.00 and Includes the following:

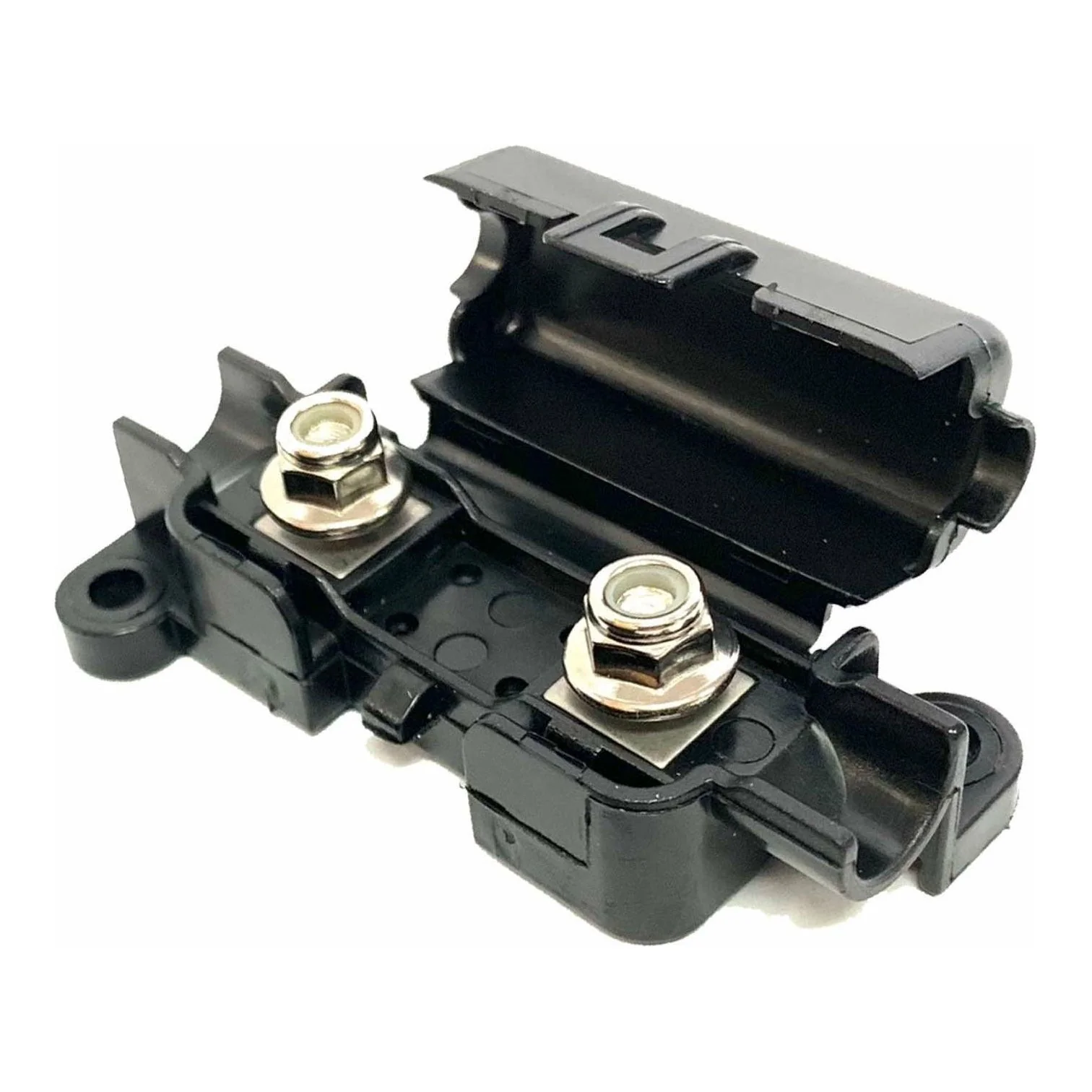

| 1 x HDBT100 Battery Tray | 1 x MIDI Fuse Holder |
| 1 x Redarc SBI12 Battery Isolator 100 Amp |

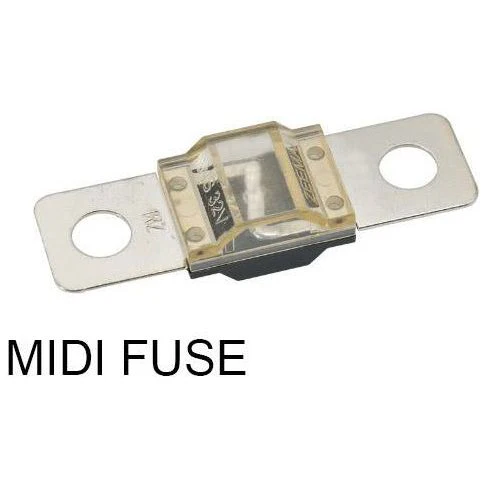

1 x MIDI Fuse - rated 60 Amps |
| 1 x 25sq cable - Single RED Ā Ā Ā - 3mt length |
1 x (Pk2) Cable lugs 10 x 6mm |
| 1 x 25sq cable - Single BLACK - 2mt length | 2 x (Pk2) Cable lugs 25 x 8mm |
| 1 x 8B&S TWIN core cableĀ Ā Ā Ā Ā - 6mt length | 2 x (Pk2) Cable lugs 25 x 10mm |
| 2 x (Pk5) Zip-tie pack | 1 x Heat-shrink pack |
Note:Ā Ā Ā No battery included in this packageĀ
Ā
PART NO HDBT100
Suits: Landcruiser 70 Series 1VD-FTV, 4.5 Litre V8 Turbo Diesel (ABS) Wagon/Ute Ā
Models: Manual
Years: 2007āSeptember 2016
Location: Engine Bay
Max Battery Size (mm): L300 x W175 x H220
Max Battery Weight: 24Kg Ā
Suits Battery: N70 (AGM)
Click here to download instruction Manual
Rated to approx 50 Amps over 10mt
Ā

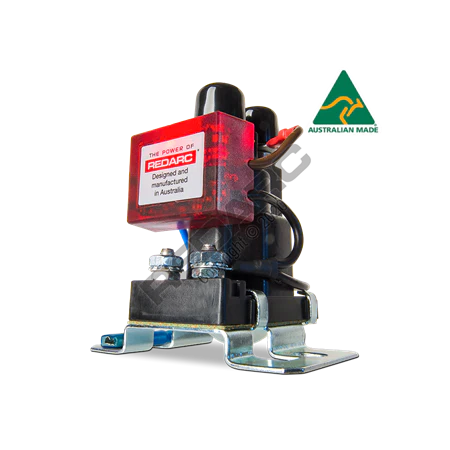

SBI1212
REDARC100 Amp Voltage Sensitive Relay
(Battery Isolator)
SPECIFICATIONS
|
PRODUCT DETAILS:
PART NO.
VOLTAGE CHARGING CURRENT CUT - IN VOLTAGE CUT - OUT VOLTAGE MINIMUM OPERATING VOLTAGE CHARGE TYPE CONTROL MOUNTING CURRENT DRAW SURGE PROTECTION INGRESS PROTECTION OVERRIDE RECOMMENDED FUSE MINIMUM CABLE SIZE APPROVALS L.E.D CHARGE INDICATION |
SBI1212
12 VOLT 100 AMPS CONTINUOUS (not recommended for winching) 13.2 - 13.4 VOLTS 12.6 - 12.7 VOLTS 10 VOLTS PARALLEL MCU SURFACE / FIREWALL CHARGING 550mA (Standby 10mA) BUILT - IN IP66 RATING REQUIRES MINIMUM 10 VOLTS 150 AMPS 14mm2 (6 B&S) EMC POWER ON |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
