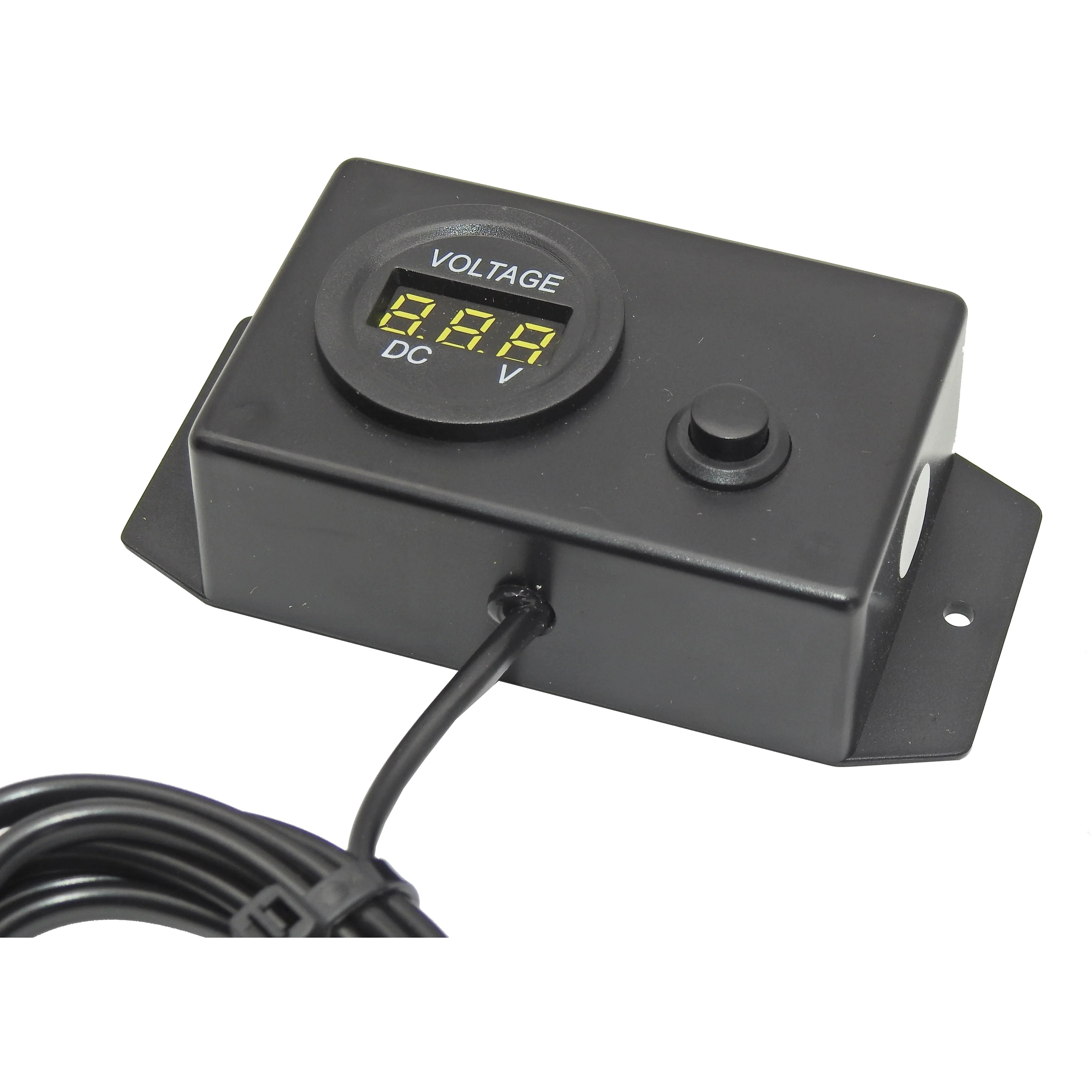

This volt meter has been designed to allow you an easy way to monitor the battery's charge condition by digital read out.

The volt meter is designed to rear both 12volt and 24 volt, which a range from 9-33volts. The push button allows for the volt meter to switch ON / OFF when desired. Once pushed, the button will 'hold in' until pressed again to release and turn off the gauge.

The volt meter is pre-wired to 3mt of 2mm twin core cable.

* It is advised to install an in line fuse in any line that feeds off a battery connection (recommended 3-5 Amp fuse)

This volt meter is available in the following illuminated colours

• White
• Blue
• Red



Item specifications:

Part No.	CB-VOLT
Voltage	9 - 33 Volts
Dimensions:	L 109mm x H 55mm W 30mm (35mm incl push button)
Cable Gauge	3mm automotive twin core
Cable length	3mt
Approx Power usage	3-4ma
Warranty	12 months
