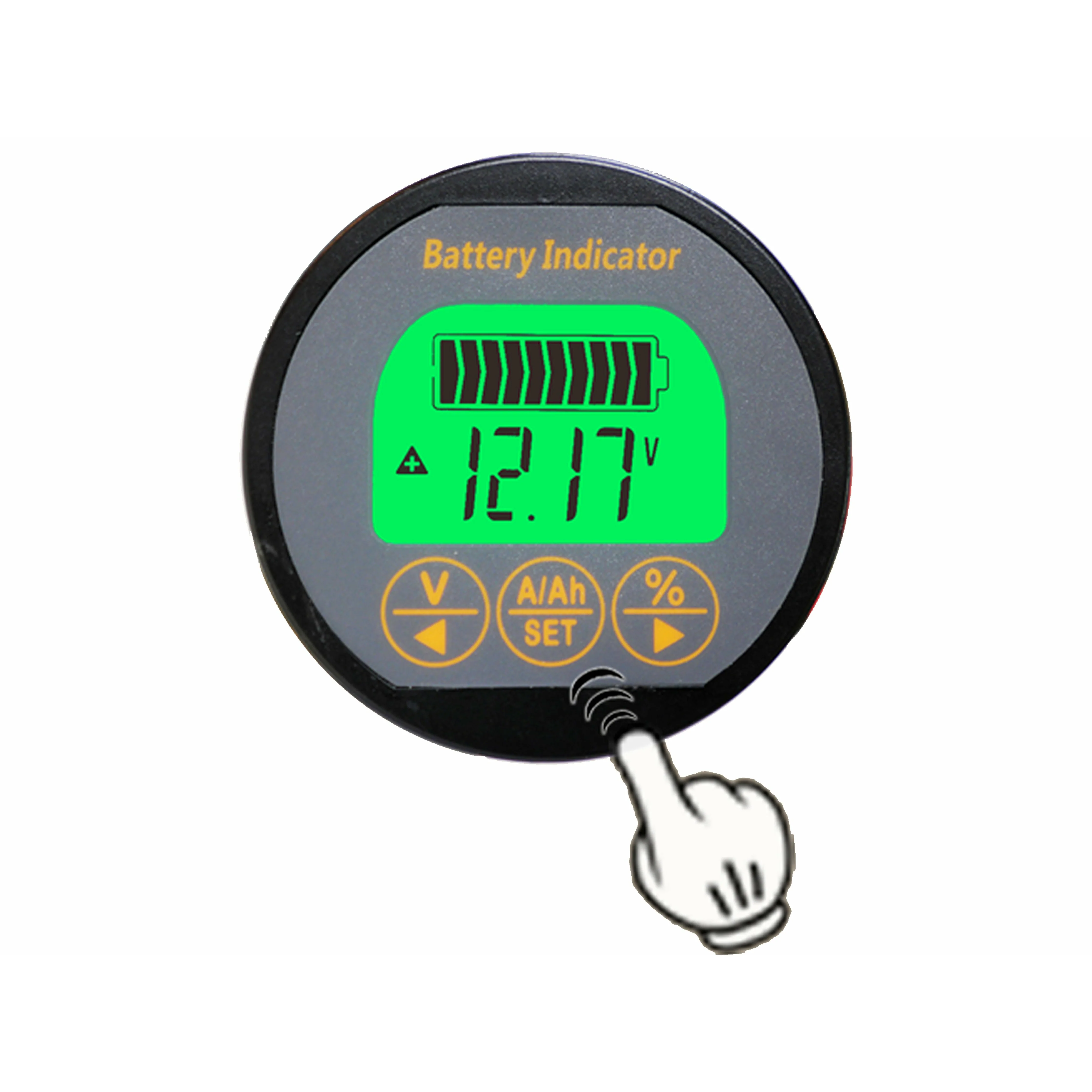

100 Amp Battery Capacity Volt / Amp meter (Max 80V) | BCI-R100 | Suits Lithium & AGM
This digital meter is truly a one of a kind. When installed correctly, the meter will allow the user to to monitor:
- Voltage of the battery
- Current (Input or Output)
- Remaining capacity of battery in percentage
Ā
This particular gauge is uniquely suitable for monitoring different chemistry batteries, such as LITHIUM or lead acid batteries (AGM / GEL / Wet-cell batteries).
With an operating parameter 8 - 80 Volts, this unit is suitable for 12 Volt / 24 Volt / 36 Volt / 48 Volt systems.

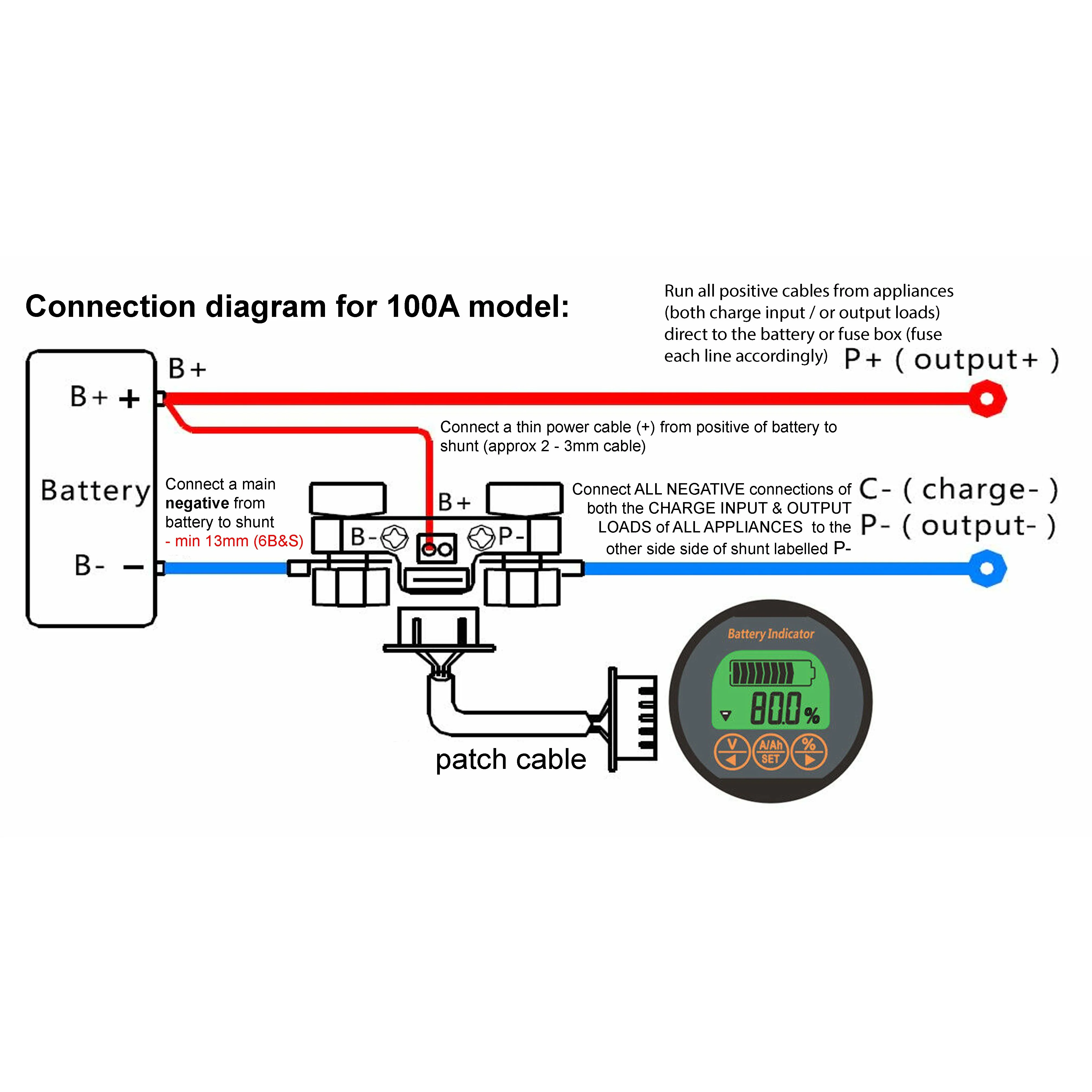

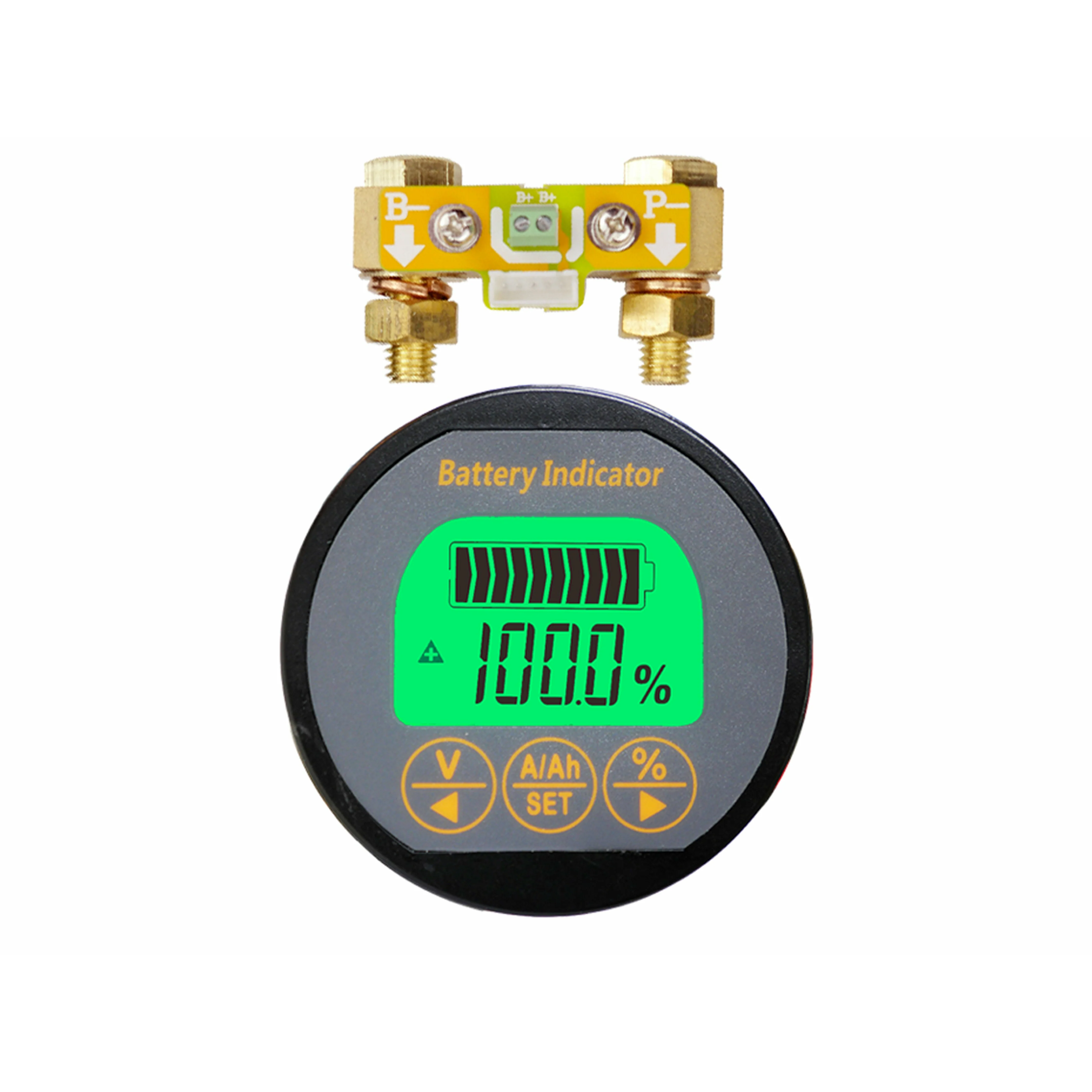

Supplied with a 100 Amp Shunt, patch cable and digital gauge; the gauge is extremely easy to wire to any battery system. Simply follow the provided wiring diagram below:Ā
| Part No | BCI-R100 |
| Current | 100 AmpsĀ (available in higher capacities also) |
| Operating voltage | DC 8V - 80V |
| Overall size | 59 X 20mm |
| Working power consumption | 10.mA (Max 12.0mA) |
| Standby power consumption | 0.5mA (Max 0.6mA) |
| Sleep power consumption | 50uA (Max: 60uA) |
| Voltage acquisition accuracy | +/-1.0% |
| Current acquisition accuracy | +/-1.0% |
| Ambient temperature range | 0 - 35C |
| Back light on current (50A) |
30mA (Max 60mA) |
| Battery capacity setting value | 0.0 - 999 A |
Display:
1.Residual capacity of battery (Ah or mAh)
2.Capacity percentage
3.Battery voltage remaining
4.Battery current remainingĀ
5.Power output
